| Optical system |
US optical system (infinty-corrected) |
| Observation method |
Reflected light brightfield observation, reflected light simple polarizing
observation |
| Focus |
Vertical revolvig nosepiece movement (fixed stage), coarse and fine
handles (with tirquw adjustment), roller guide movement.
Stroke (from 1mm above focusing from stage surfave)Upward: 7mm,Downward:2 mm stroke per coarse handle rotation: 26.8mm.Stroke
per fine handle roation: 0.2mm |
| Revolcing nosepiece |
Quadruple revolving nosepiece |
| Stage |
Plabd stage |
Size: 1600(W) x 250(D)mm,stage insert plate
type(no accessories) |
| Mechanical stage |
Stroke: 120mm(X) x 78(Y)mm
Coaxial handle: attachable to right/left side of plane
stage Use special stage plate CK40M-CP to obser
ve samples up to 50mm
|
| Illumination |
Illuminator |
Buite-in aperture diaphragm (Lever operation type)
Variouse 0 25mm filters can be inserted |
| Light source |
6V30WHAL -L: long-life halogen lamp
6V30WHAL - High intensity halogen lamp
Rated power output : 6V -30VA
Rated input voltage, current and frequency :
100-120V/220-240V ~ 0.85?0.45A,50/60hz |
| Observation tube |
Eyepices: Attavhed
to microscope
body (F,N . 18) |
U-CTBl (titing tube)
inclination angle: 30˚ -60˚, adjustable interpupillary
distand range: 48 - 75mm |
Eyepices:
WHB10x3,WHB10x3
- H (f.n. 20) |
U-CTBl30-2 (binocular tube), U-CTR30-2(trinocular
tube) inclintion angle: 30˚, interpupillary diatance:
48 ~ 75mm |
Eyepices:
WHB10x3,WHB10x3
-H CROSSWH10x2
(F. N.22) |
U-CTBl-3 (tiltibg binocular tube)
inclination angle: 5˚-35˚, interpupillary distance:
50 ~ 76mm |
| Intermediate attachments |
U-CA, GX -SPU, U-eca, U-DA, U-DO3 |
| Electrical components |
Continuous light intensity volume adjustment, built - in voltage exchange
switch |
| Power consumption |
Maximum power consumption:85VA 40W |

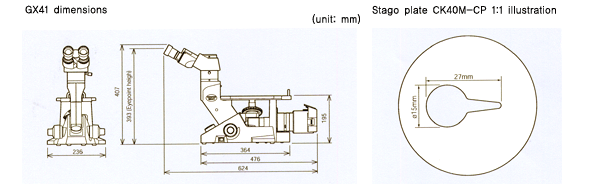

| Dimensions |
236(W) x 24(D) x 407(H)mm (binocuar tube) |
| Weight |
Approx 10kg |
