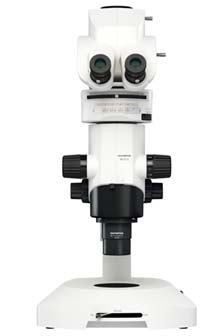

The MVX10 Optical concept
The MVX is a mono zoom microscope designed specifically for fluorescence imaging. Featuring a large diameter single zoom optical path, the MVX is optimized to collect light with unprecedented efficiency and resolution at all its magnifications. The MVX gives the user maximum flexibility in observing the specimen without switching objectives. A series of parfocal objectives is also available along with a dual nosepiece. This allows the user to utilize the full zoom range of two objectives by easily rotating one or the other into the light path. Using the 0.63x and 2x objectives and 10x eyepieces on the MVX10 gives an effective zoom range of 4x to 126x, or a 31:1 ratio that takes your field of view from 55mm to 1.74mm.

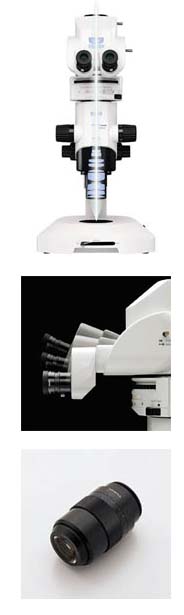

The Tilting Trinocular Observation Tube
Allows the eyepiece to be inclined from 0¨¬ to 23¨¬ for maximum user comfort and offers a two position optical path selector for either 100% to the binocular tubes or 100% to the camera. This is a specially designed observation tube with a unique pupil separation optical path that can deliver a stereo-like image to the eyepieces. The stereo effect can be selected ¡°on¡± or ¡°off¡± via a slider mechanism.
MVX Optics
0.63x MVX Plan Apochromat Lens has a high numerical aperture of 0.15.
1x MVX Plan Apochromat Lens has a high numerical aperture of 0.25.
2x MVX Plan Apochromat Lens - A unique and specially designed high-numerical aperture lens of 0.50 NA that features a correction-collar for correcting aberrations when imaging through plastic vessels or up to 5mm of water. This 2x PF (part of the parfocal series) objective provides superior resolution of over 1500 lines/mm. |
